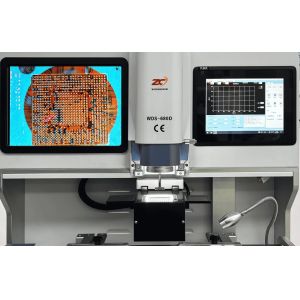

China Wisdomshow WDS-880D PLC Automatic BGA Rework Station with 7-Axis Electric Control and High Precision for PCB Repair wholesale

Wisdomshow WDS-880D PLC Automatic BGA Rework Station with 7-Axis Electric Control and High Precision for PCB Repair

Ask Latest Price

Video Channel

MOQ :1

Price :13500

Model NO. :WDS-880D

Max Eccentricity Distance :100mm

Tilting Angle :0-90°

Voltage :110V/220V

Total Power :6400W

Upper Heater :1200W

Down Heater :1200W

IR Heater :4000W

Suitable PCB Size :Max 450*390mm Min10*10mm

Applicable PCB Thickness :0.5-8mm

Mounting Precision :±0.01mm

Temperature Measuring Interface :1 PC

Applicable Chip :0.8*0.8mm-120*120mm

Overall Dimensions :820×760 ×1400mm

Temperature Accuracy :±3 degrees

Contact Now

Add to Cart

View Product Description

Product Description

Wisdomshow WDS-880D PLC Automatic BGA Rework Station with 7-Axis Electric Control and High Precision for PCB Repair

WDS-880D BGA rework station

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.

Auto-Alignment Precision
- Optical system with ±0.01mm accuracy, dual-color imaging, and auto-focus for flawless BGA placement

Multi-Zone Heating
IR + hot air hybrid heating with three independent zones for uniform, rapid PCB warming.

Smart Temperature Control
Closed-loop K-type sensors maintain ±1°C accuracy, auto-generating
SMT curves for lead-free soldering.

Versatile PCB Handling
Supports 10×10mm to 590×400mm boards, motor-driven X/Y movement, and 1800°C-resistant glass platform.
· Advanced Automation
7-axis electric control, vacuum suction (10g precision), and MES connectivity for seamless production integration.

Specification

Total power	7200W
Upper heating power supply	1600W
Lower heating power supply	1200W
Lower IR POWER	4000W
Power supply	AC220V±10% , 50/60Hz
Temperature Control	High-precision K-type thermocouple (Ksensor) closed-loop control (Closed Loop), independent upper and lower temperature measurement with a temperature accuracy of up to ±3 degrees
Electrical Appliance Selection	Touch screen+Temperature control module + Single chip microcomputer
Maximum PCB Size	590×400mm
Minimum PCB Size	10×10mm
Overall Dimensions	820×760 ×1400mm

Strict Temperature Control System

♦8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve. ♦It adopting high accuracy K-type thermocouple close-loop control.
♦The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.

Packaging & Shipping

1. Standard Export Wooden cases
2. Delivery in 3 work days after payment confirm;
3. Shipping by TNT,DHL,FEDEX , or by air or by sea
4. Loading port: Shenzhen or Hongkong.

Certifications

CE certification

FDA certification

ISO 9001 certification

Company Profile

Shenzhen Wisdomshow Technology Co., Ltd. was founded in 2011 by a team of experienced engineers and sales experts. Specializing in BGA rework stations and X-RAY inspection equipment, the company has grown rapidly through continuous R&D and technological innovation. In 2015, it expanded into the X-RAY field, launching several advanced inspection systems.Our factory bases on Shenzhen Baoan, has about ten thousand square meters.With ISO9001, CE and FDA certifications, multiple patents, and strong customization capabilities, Wisdomshow serves clients across Asia, Europe, and North America. Its solutions are widely used in server motherboard repair, LED assembly, and smartphone production. Guided by the principles of professionalism, innovation, and integrity, the company continues to earn global trust and recognition.

Exhibition

After Sales Service

Contact:24 hours technical support by email or calling;
Warranty:one year free,but all the other relative cost should be on the buyer's account;
Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
Service: Friendly English User manual provided; Good and professional after-sales service;
Price:Give great discount to AGENCY to ensure agents profit.
